Industrial Ovens for Precision Curing & Thermal Processing
Kratos Industrial Ovens are engineered for accurate, reliable, and energy-efficient thermal processing across PTFE, ceramic, enamel, PU, and specialty coating applications. Designed for continuous and batch operations, our ovens ensure consistent curing quality, uniform temperature distribution, and safe operation in demanding industrial environments.
Kratos Industrial Ovens are developed to meet the critical temperature control and uniformity requirements of modern coating and finishing processes. With electric heating, advanced air circulation, and PLC-based automation, the ovens deliver stable and repeatable thermal performance.
Available in conveyorized and batch configurations, the systems integrate seamlessly with automatic coating lines or operate as standalone units, providing flexibility for different production volumes and process needs.

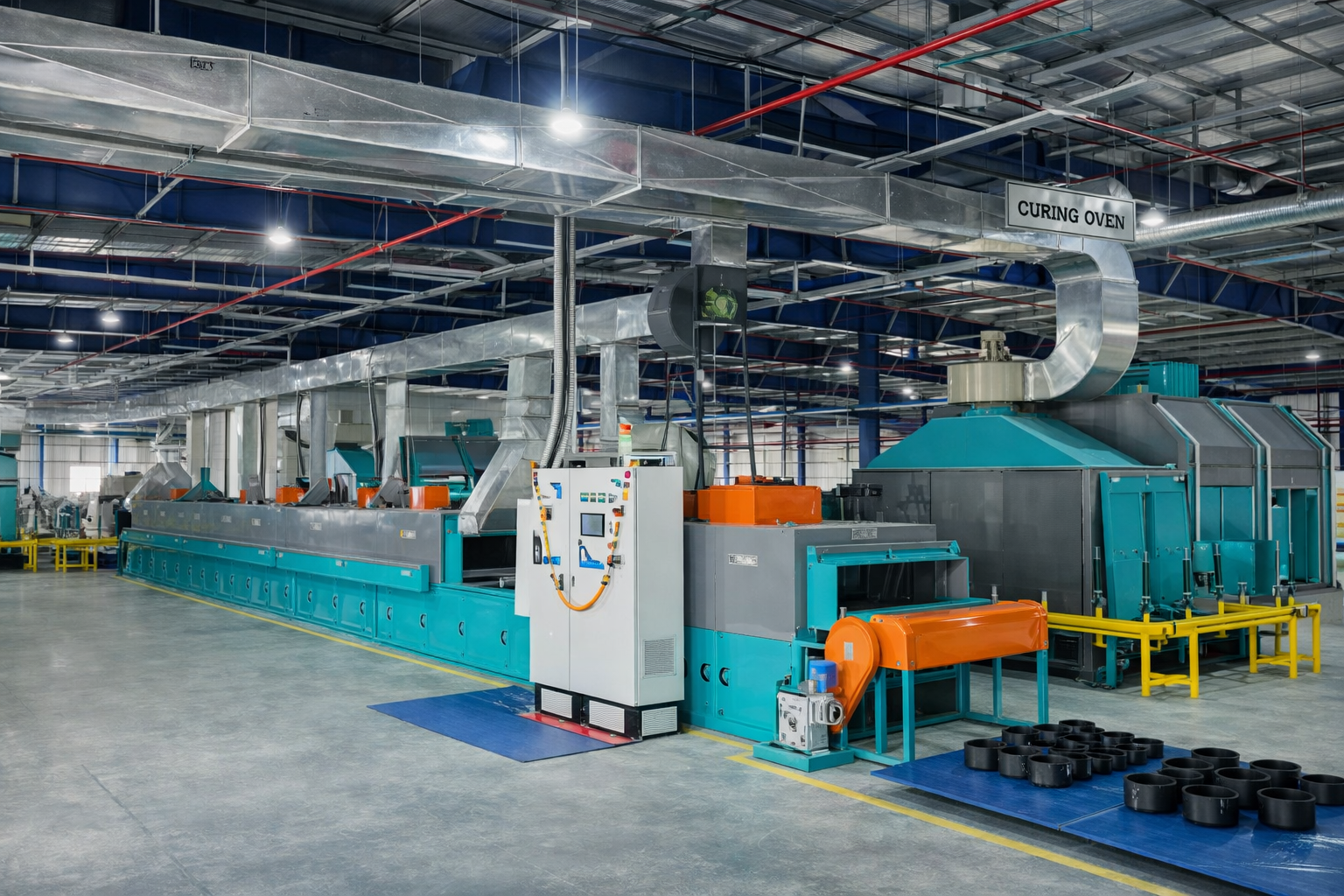

Conveyorized Industrial Ovens
Kratos Conveyorized Ovens are designed for continuous, high-throughput curing applications. Equipped with overhead or honeycomb chain conveyors, these ovens support synchronized material movement and uniform exposure to controlled heat zones.
| Parameter | Specification |
|---|---|
| Oven Type | PTFE / Ceramic Curing Oven/Enamel |
| Application | PTFE / Ceramic/PU/Enamel/Special Paints coating curing |
| Heating Medium | Electric Heating |
| Temperature Range | 200 °C to 800 °C (Adjustable) |
| Temperature Control | Electric heating with thyristor-based controller for precise temperature regulation and high energy efficiency |
| Temperature Uniformity | ±10 °C across working zone |
| Work piece Size | Diameter: 200 mm to 350 mm Height: 15 mm to 150 mm |
| Conveyor System | Overhead Chain Conveyor / Honeycomb Chain |
| Conveyor Speed | Variable, 0 to 1.2 m/min |
| Insulation | High-density mineral wool and Ceramic Blanket with insulated panels |
| Air Circulation System | hot air re-circulation |
| Exhaust System | Controlled exhaust with adjustable dampers |
| Control & HMI System | PLC-based control system with color HMI touch panel for temperature setting, monitoring, alarms, and diagnostics |
| Safety Features | Over-temperature protection, door interlocks, emergency stop |
| Construction | MS fabricated structure with high-temperature-resistant finish |
| Compliance | Designed as per industrial safety and thermal process standards |

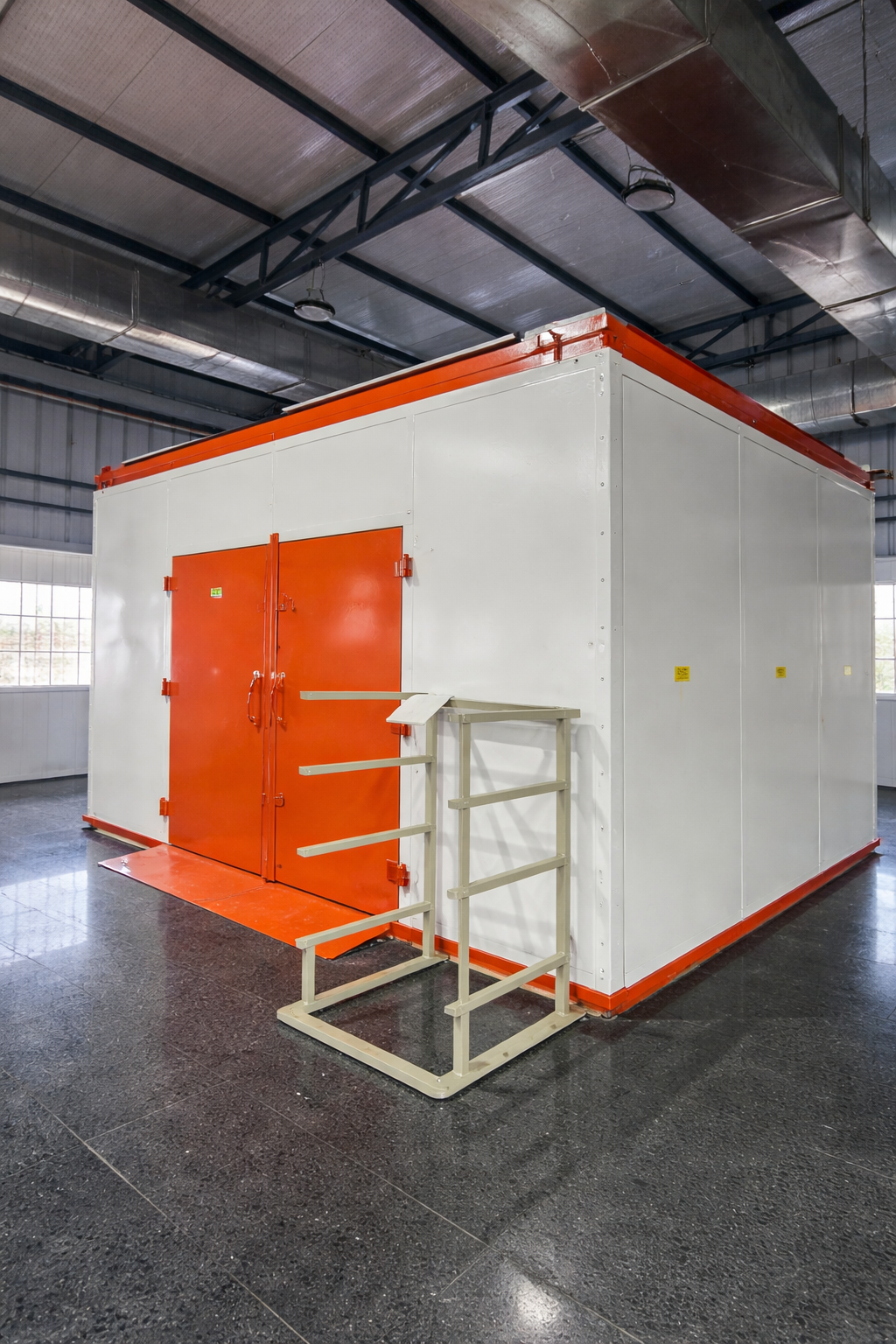

Batch Type Industrial Ovens
Kratos Batch Ovens provide flexible and precise thermal processing for varied component sizes and batch production requirements. With customizable chamber sizes and high-accuracy temperature control, they are ideal for specialized curing applications.
| Parameter | Specification |
|---|---|
| Oven Type | Batch Type Industrial Oven |
| Application | Paint curing / PTFE / Ceramic coating curing |
| Heating Medium | Electric Heating |
| Temperature Range | 50 °C to 800 °C (Adjustable) |
| Temperature Control | Electric heating with thyristor-based PID controller for precise temperature control and high energy efficiency |
| Temperature Uniformity | ±2 °C across working zone |
| Chamber Size | As per component size and batch requirement |
| Loading Method | Manual / Trolley-mounted |
| Door Type | Single / Double leaf hinged door with safety interlock |
| Insulation | High-density mineral wool with optional ceramic wool hot-face layer |
| Air Circulation System | Forced hot air circulation with high-temperature recirculation fans |
| Exhaust System | Controlled exhaust with adjustable damper |
| Control & HMI System | PLC-based control system with color HMI touch panel for temperature setting, monitoring, alarms, and diagnostics |
| Safety Features | Over-temperature protection, door interlocks, emergency stop |
| Construction | MS fabricated structure with high-temperature-resistant finish |
| Compliance | Designed as per industrial safety and thermal process standards |
Non-Stick Ceramic & Sol-Gel Coating Solutions
Developed for precision thin-film application, Kratos ceramic and sol-gel coating solutions ensure premium surface finish, controlled coating thickness, and enhanced non-stick properties. With stable thermal processing and automated spray control, the system delivers repeatable quality, reduced rejection, and consistent throughput for modern cookware production.
| Parameter | Specification |
|---|---|
| Production Capacity | 600 – 1,000 pieces per hour |
| Control & HMI System | PLC-based control system with color HMI touch panel for machine operation, parameter setting, alarms, and diagnostics |
| Conveyor Speed | 0 to 5m/min (variable) |
| Work piece Size | Diameter: 150 mm to 450 mm Height: 15 mm to 150 mm |
| Spraying Method | Fixed Gun System / Robotic Spray |
| Transportation Method | Track Chain Conveyor |
| Loading Method | Manual |
| Curing Temperature Range | 400°C to 450°C (Adjustable) |
| Curing Oven | Electric heating with thyristor-based controller for precise temperature control and high energy efficient |
| Stage configuration | Loading → De-dusting → Base Coat → Flash-off Oven → Mid Coat → Top Coat → Curing Oven → De-dusting → Exterior Coating → Final Curing Oven→ Un Loading |
